Setup graph middleware

How to setup graph middleware and api portal in SettleMint platform

Middleware acts as a bridge between your blockchain network and applications, providing essential services like data indexing, API access, and event monitoring. Before adding middleware, ensure you have an application and blockchain node in place.

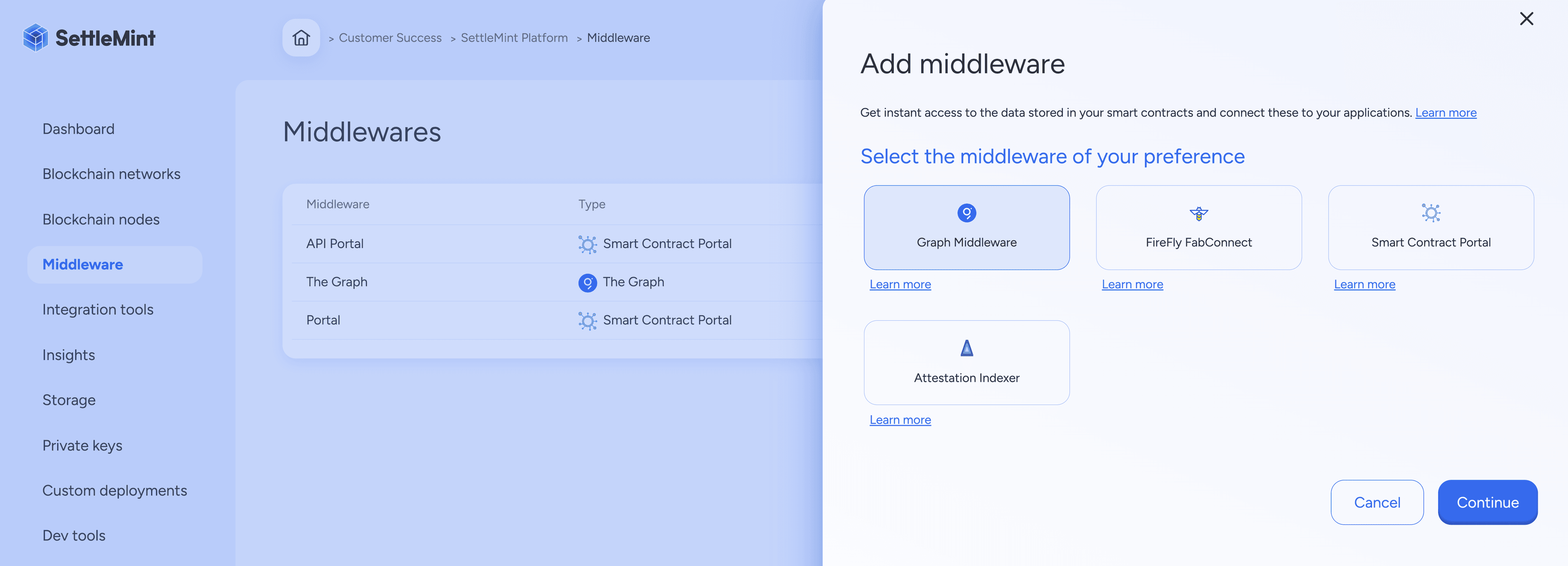

How to add middleware

settlemint login

# Get the list of available middleware types

settlemint platform create middleware --help

# Create a middleware

settlemint platform create middleware <type> <name>

# Get information about the command and all available options

settlemint platform create middleware <type> --help ```

</Tab>

<Tab value="SDK JS">
```typescript
import { createSettleMintClient } from '@settlemint/sdk-js';

const client = createSettleMintClient({
  accessToken: 'your_access_token',
  instance: 'https://console.settlemint.com'
});

// Create middleware
const createMiddleware = async () => {
  const result = await client.middleware.create({
    applicationUniqueName: "your-app-unique-name",
    name: "my-middleware",
    type: "SHARED",
    interface: "GRAPH",
    blockchainNodeUniqueName: "your-node-unique-name",
    region: "EUROPE",  // Required
    provider: "GKE",   // Required
    size: "SMALL"      // Valid options: "SMALL" | "MEDIUM" | "LARGE"
  });
  console.log('Middleware created:', result);
};

Manage middleware

# List middlewares
settlemint platform list middlewares --application <app-name>

# Get middleware details
settlemint platform read middleware <middleware-name>

# Delete middleware
settlemint platform delete middleware <middleware-name>

Subgraph folder structure in code studio ide

subgraph/
│
├── subgraph.config.json
│
├── datasources/
│   ├── mycontract.gql.json
│   ├── mycontract.ts
│   └── mycontract.yaml
│
└── fetch/
└── mycontract.ts

Subgraph deployment process

1. Collect constants needed

Find the chain ID of the network from igntition>deployments folder name (chain-ID) or from the platform UI at blockchain networks > selcted network > details page, it will be something like 47440.

Locate the contract address, deployed contract address is stored in deployed_addresses.json file located in igntition>deployments folder.

2. Building subgraph.config.json file

This file is the foundational configuration for your subgraph. It defines how and where the subgraph will be generated and which contracts it will be tracking. Think of it as the control panel that the subgraph compiler reads to understand what contracts to index, where to start indexing from (which block), and which folder contains the relevant configurations (e.g., YAML manifest, mappings, schema, etc.).

Each object in the datasources array represents a separate contract. You specify the contract's name, address, the block number at which the indexer should begin listening, and the path to the module folder (which holds the YAML manifest and mapping logic). This file is essential when working with Graph CLI or SDKs for compiling and deploying subgraphs.

When writing this file from scratch, you will need to gather the deployed contract address, decide the indexing start block (can be 0 or a specific block to save resources), and organize contract-related files in a logical module folder.

{
  "output": "generated/scs.",
  "chain": "44819",
  "datasources": [
    {
      "name": "UserData",
      "address": "0x8b1544B8e0d21aef575Ce51e0c243c2D73C3C7B9",
      "startBlock": 0,
      "module": ["userdata"]
    }
  ]
}

3. Create userdata.yaml file

This is the YAML manifest file that tells the subgraph how to interact with a specific smart contract on-chain. It defines the contract's ABI, address, the events to listen to, and the mapping logic that should be triggered for each event.

The structure must follow a strict YAML format, wrong indentation or a missing property can break the subgraph. Under the source section, you provide the contract's address, the ABI name, and the block from which indexing should begin.

The mapping section details how the subgraph handles events. It specifies the API version, programming language (AssemblyScript), the entities it will touch, and the path to the mapping file. Each eventHandler entry pairs an event signature (from the contract) with a function that will process it. When writing this from scratch, ensure that all event signatures exactly match those in your contract (parameter order and types must be accurate), and align them with the corresponding handler function names.

- kind: ethereum/contract
  name: { id }
  network: { chain }
  source:
    address: "{address}"
    abi: UserData
    startBlock: { startBlock }
  mapping:
    kind: ethereum/events
    apiVersion: 0.0.5
    language: wasm/assemblyscript
    entities:
      - UserProfile
      - ProfileCreated
      - ProfileUpdated
      - ProfileDeleted
    abis:
      - name: UserData
        file: "{root}/out/UserData.sol/UserData.json"
    eventHandlers:
      - event: ProfileCreated(indexed uint256,string,string,uint8,string,bool)
        handler: handleProfileCreated
      - event: ProfileUpdated(indexed uint256,string,string,uint8,string,bool)
        handler: handleProfileUpdated
      - event: ProfileDeleted(indexed uint256)
        handler: handleProfileDeleted
    file: { file }

4. Create userdata.gql.json file

This JSON file defines the GraphQL schema that powers your subgraph's data structure. It outlines the shape of your data, which entities will be stored in the Graph Node's underlying database, and the fields each entity will expose to users via GraphQL queries.

Every event-based entity (like ProfileCreated, ProfileUpdated, ProfileDeleted) is linked to the main entity (here, UserProfile) to maintain a historical audit trail. Each entity must have an id field of type ID!, which serves as the primary key.

You then define all other fields with their data types and nullability. When writing this schema, think in terms of how data will be queried: What information will consumers of the subgraph want to retrieve? The names and types must exactly reflect the logic in your mapping files. For reuse across projects, just align this schema with the domain model of your contract.

[
  {
    "name": "UserProfile",
    "description": "Represents the current state of a user's profile.",
    "fields": [
      { "name": "id", "type": "ID!" },
      { "name": "name", "type": "String!" },
      { "name": "email", "type": "String!" },
      { "name": "age", "type": "Int!" },
      { "name": "country", "type": "String!" },
      { "name": "isKYCApproved", "type": "Boolean!" },
      { "name": "isDeleted", "type": "Boolean!" }
    ]
  },
  {
    "name": "ProfileCreated",
    "description": "Captures the event when a new user profile is created.",
    "fields": [
      { "name": "id", "type": "ID!" },
      { "name": "userId", "type": "BigInt!" },
      { "name": "userProfile", "type": "UserProfile!" }
    ]
  },
  {
    "name": "ProfileUpdated",
    "description": "Captures the event when an existing user profile is updated.",
    "fields": [
      { "name": "id", "type": "ID!" },
      { "name": "userId", "type": "BigInt!" },
      { "name": "userProfile", "type": "UserProfile!" }
    ]
  },
  {
    "name": "ProfileDeleted",
    "description": "Captures the event when a user profile is soft-deleted.",
    "fields": [
      { "name": "id", "type": "ID!" },
      { "name": "userId", "type": "BigInt!" },
      { "name": "userProfile", "type": "UserProfile!" }
    ]
  }
]

5. Create userdata.ts file

This file contains the event handler functions written in AssemblyScript. It directly responds to the events emitted by your smart contract and updates the subgraph's store accordingly. Each exported function matches an event in the YAML manifest. Inside each function, the handler builds a unique ID for the event (usually combining the transaction hash and log index), processes the event payload, and updates or creates the relevant entity (here, UserProfile).

The logic can include custom processing like formatting values, filtering, or even transforming data types. This file is where your business logic resides, similar to an event-driven backend microservice. You should keep this file modular and focused, avoiding code repetition by calling reusable helper functions like fetchUserProfile. When writing this from scratch, always import the generated event types and schema entities, and handle edge cases like entity non-existence or inconsistent values.

import { BigInt } from "@graphprotocol/graph-ts";
import {
  ProfileCreated as ProfileCreatedEvent,
  ProfileUpdated as ProfileUpdatedEvent,
  ProfileDeleted as ProfileDeletedEvent,
} from "../../generated/userdata/UserData";
import {
  UserProfile,
  ProfileCreated,
  ProfileUpdated,
  ProfileDeleted,
} from "../../generated/schema";
import { fetchUserProfile } from "../fetch/userdata";

export function handleProfileCreated(event: ProfileCreatedEvent): void {
  // Generate a unique event ID using transaction hash and log index
  let id = event.transaction.hash.toHex() + "-" + event.logIndex.toString();
  let entity = new ProfileCreated(id);
  entity.userId = event.params.userId;

  // Fetch or create the UserProfile entity
  let profile = fetchUserProfile(event.params.userId);
  profile.name = event.params.name;
  profile.email = event.params.email;
  profile.age = event.params.age;
  profile.country = event.params.country;
  profile.isKYCApproved = event.params.isKYCApproved;
  profile.isDeleted = false;
  profile.save();

  // Link the event entity to the user profile and save
  entity.userProfile = profile.id;
  entity.save();
}

export function handleProfileUpdated(event: ProfileUpdatedEvent): void {
  let id = event.transaction.hash.toHex() + "-" + event.logIndex.toString();
  let entity = new ProfileUpdated(id);
  entity.userId = event.params.userId;

  // Retrieve and update the existing UserProfile entity
  let profile = fetchUserProfile(event.params.userId);
  profile.name = event.params.name;
  profile.email = event.params.email;
  profile.age = event.params.age;
  profile.country = event.params.country;
  profile.isKYCApproved = event.params.isKYCApproved;
  profile.isDeleted = false;
  profile.save();

  entity.userProfile = profile.id;
  entity.save();
}

export function handleProfileDeleted(event: ProfileDeletedEvent): void {
  let id = event.transaction.hash.toHex() + "-" + event.logIndex.toString();
  let entity = new ProfileDeleted(id);
  entity.userId = event.params.userId;

  // Retrieve the UserProfile entity and mark it as deleted
  let profile = fetchUserProfile(event.params.userId);
  profile.isDeleted = true;
  profile.save();

  entity.userProfile = profile.id;
  entity.save();
}

6. Create another userdata.ts in the fetch folder

This is a helper utility designed to avoid redundancy in your mapping file. It abstracts the logic of either loading an existing entity or creating a new one if it doesn't exist.

It enhances reusability and reduces boilerplate in each handler function. The naming convention of this file usually mirrors the module or entity it's associated with (e.g., fetch/userdata.ts).

The logic inside the function uses the userId (or other unique identifier) as a string key and ensures that all required fields have a default value. When writing this from scratch, ensure every field in your GraphQL schema has an initialized value to prevent errors during Graph Node processing.

import { BigInt } from "@graphprotocol/graph-ts";
import { UserProfile } from "../../generated/schema";

/**
 * Fetches a UserProfile entity using the given userId.
 * If it does not exist, a new UserProfile entity is created with default values.
 *
 * @param userId - The user ID as a BigInt.
 * @returns The UserProfile entity.
 */
export function fetchUserProfile(userId: BigInt): UserProfile {
  let id = userId.toString();
  let user = UserProfile.load(id);

  if (!user) {
    user = new UserProfile(id);
    user.name = "";
    user.email = "";
    user.age = 0;
    user.country = "";
    user.isKYCApproved = false;
    user.isDeleted = false;
  }

  return user;
}

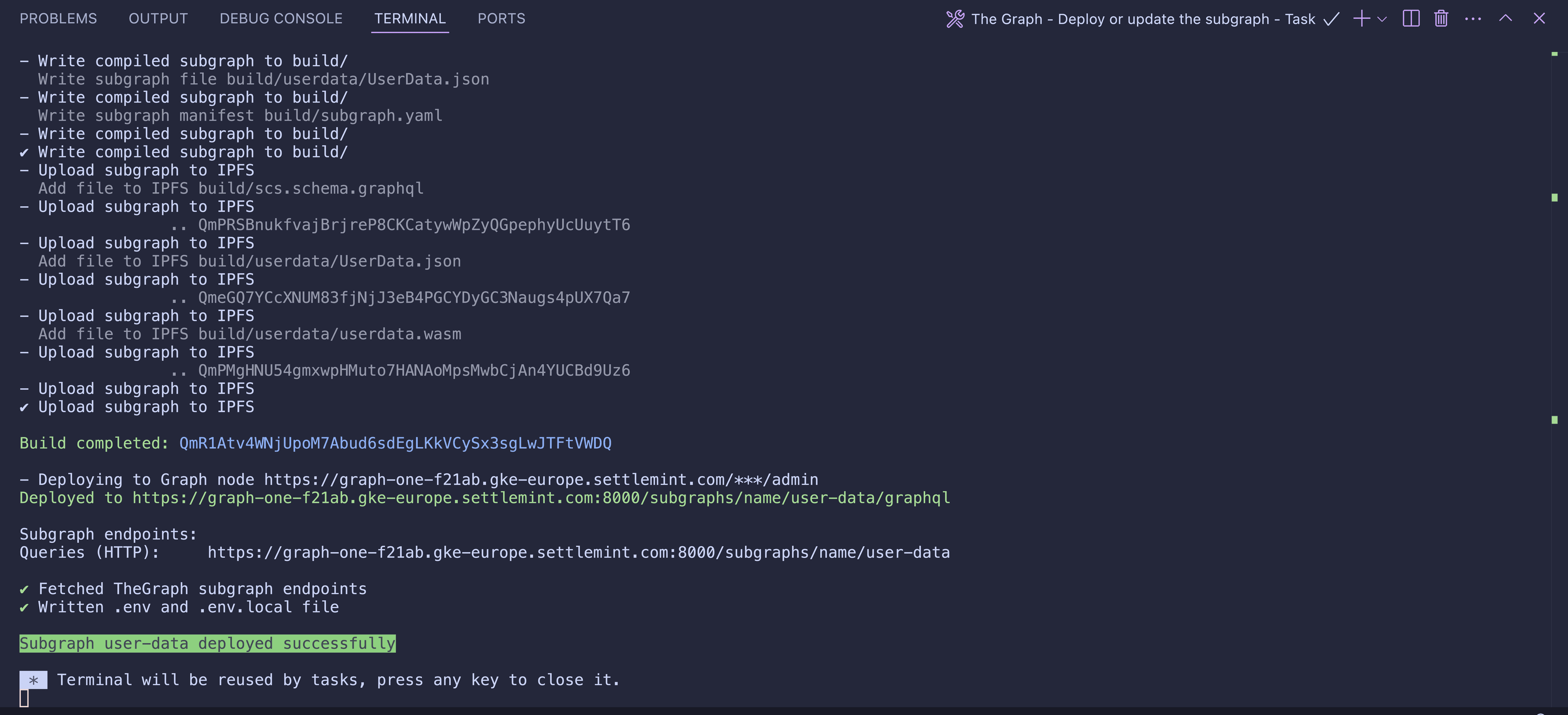

Codegen, build and deploy subgraph

Run codegen script using the task manager of the ide

Run graph build script using the task manager of the ide

Run graph deploy script using the task manager of the ide

Why we see a duplicay in the graphql schema -

In The Graph's autogenerated schema, each entity is provided with two types of queries by default:

• Single-Entity Query:
  userProfile(id: ID!): UserProfile
  Fetches a single UserProfile by its unique ID.

• Multi-Entity Query:
  userProfiles(...): [UserProfile]
  Fetches a list of UserProfile entities, with optional filters to refine the results.

Why This Duplication Exists - Flexibility in Data Access: By offering both single-entity and multi-entity queries, The Graph allows you to choose the most efficient way to access your data. If you know the exact ID, you can use the single query for a quick lookup. If you need to display or analyze a collection of records, the multi-entity query is available. - Optimized Performance: Retrieving a specific record via the single-entity query avoids unnecessary overhead that comes with filtering through a list, ensuring more efficient data access when the unique identifier is known. - Catering to Different Use Cases: Different parts of your application may require different query types. Detailed views might need a single record (using userProfile), while list views benefit from the filtering and pagination offered by userProfiles. - Consistency Across the Schema: Generating both queries for every entity ensures a consistent API design, which simplifies development by providing a predictable pattern for data access regardless of the entity.

Graph middleware - querying data

We can query based on the ID

Or we can query to return all entries
