Network manager

The Blockchain Network Manager offers integrated monitoring and control features to manage blockchain infrastructure with precision. It provides real-time insights into node health, transaction throughput, and resource utilization across all environments. Administrators can view logs, receive alerts, and track operational metrics through a unified dashboard and it ensures proactive management, faster issue resolution, and greater reliability of blockchain network deployments.

Key capabilities

Create private permissioned networks

• Deploy Hyperledger Besu, Hyperledger Fabric, or Quorum networks with pre-configured templates and guided workflows, ensuring rapid setup for enterprise use cases.

Connect with public networks

• Seamlessly integrate with Ethereum, Polygon, Hedera, Avalanche, Arbitrum, Optimism, Sonic, Soneium, and other leading public blockchains, enabling hybrid solutions that leverage both public and private networks.

Join external networks

• Use SettleMint's tooling to connect to existing networks, expand infrastructure, or migrate to the SettleMint platform, providing flexibility for organizations with pre-existing blockchain deployments.

Join via invitation code

• Easily connect to pre-existing networks within SettleMint using an invitation code, streamlining collaboration in consortium setups.

---

Supported networks

The SettleMint Network Manager supports a wide range of blockchain protocols, catering to both private permissioned and public network requirements. Below is a summary of the supported networks:

---

Network deployment & configuration

Evm-based private networks (besu, quorum)

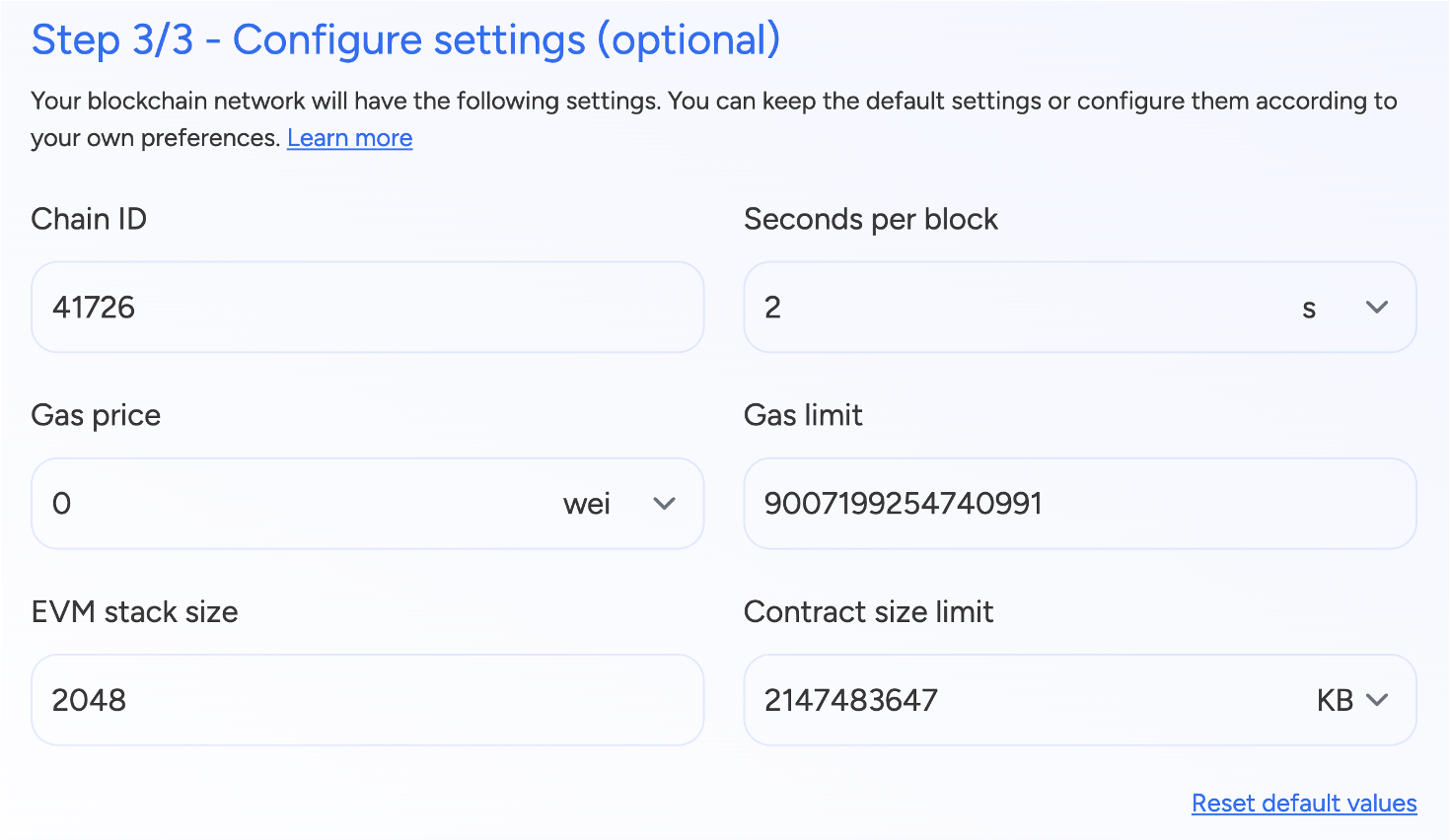

Users can configure the following parameters before deploying a private permissioned EVM-based network:

Genesis block configuration

The genesis.json file is a critical component of EVM-based blockchain networks, defining the initial state and parameters of the blockchain to ensure secure and structured network operations. Key elements include:

• Chain ID: Uniquely identifies the network to prevent replay attacks.
• Consensus Mechanism: Determines how blocks are validated, providing the necessary governance structure (e.g. QBFT, PoA, PoS).
• Pre-allocated Balances: Specify the initial allocation of tokens for specific addresses.
• QBFT Validator Information: Defines the nodes responsible for validating transactions in Quorum Byzantine Fault Tolerance (QBFT)-based networks.

Developer integrations

The SettleMint Network Manager provides developer-friendly tools to facilitate smart contract development and network interactions:

• Faucet Wallets: Enable test token distribution for private networks, making it easier for developers to test transactions.
• Genesis file availability: Users can access and download genesis.json file, allowing for easy network expansion outside SettleMint platform.

Hyperledger fabric networks

Users can configure the following settings before deploying a Fabric network:

Channel configuration and policies

Hyperledger Fabric networks use a configtx.json file to define network channels, membership rules, and policies. Key components include:

• Application Group: Defines policies for participating organizations, specifying details such as:
  • Organization Name
  • Policies:
    • Admin: Roles allow users to modify configurations.
    • Endorsement: Policies require transaction approvals from specific peers.
    • Readers and Writers: Policies define access to channel data.
• Orderer Group: Configures the ordering service responsible for transaction finalization. Settings include:
  • Batch Timeout: Determines the time before transactions are grouped into a block.
  • Max Messages Per Batch: Controls block size.
• Consensus Type: Typically etcdraft, a Raft-based ordering service.

Network governance and security

Hyperledger Fabric networks require robust security and governance mechanisms:

• Membership Service Provider (MSP): Controls identity verification and authentication, ensuring only authorized participants can access the network.
• Root Certificates and TLS Certificates: Define trusted entities for secure communication.
• Endorsement Policies: Determine how transactions are validated across organizations, enforcing compliance and preventing unauthorized modifications.
• Block Validation Policies: Ensure the integrity and security of the distributed ledger, maintaining network trustworthiness.

---

Network monitoring & management

Evm-based networks

The dashboard provides insights into:

• Network Details: Name, deployment location, creation date, blockchain version, protocol type.
• Key Configurations: Chain ID, block time, gas price, gas limit, contract size limit, EVM stack size.
• Genesis File Access: Contains initial network configuration.

System recommendations

Recommendation At least four validator nodes are required to ensure Byzantine Fault Tolerance.

Faucet wallet

• Includes mnemonic phrase, private key, derivation path, Ethereum address.
• Provides a large test balance for development and testing.

Public network monitoring parameters

The dashboard provides real-time analytics on:

• Best block height
• Current gas price
• Current gas used
• Block height over time
• Suggested gas price over time
• Gas used over time
• Transactions per block
• Pending transactions over time
• Gas limit over time
• Block size over time
• Geographical location of nodes

Monitoring and analytics

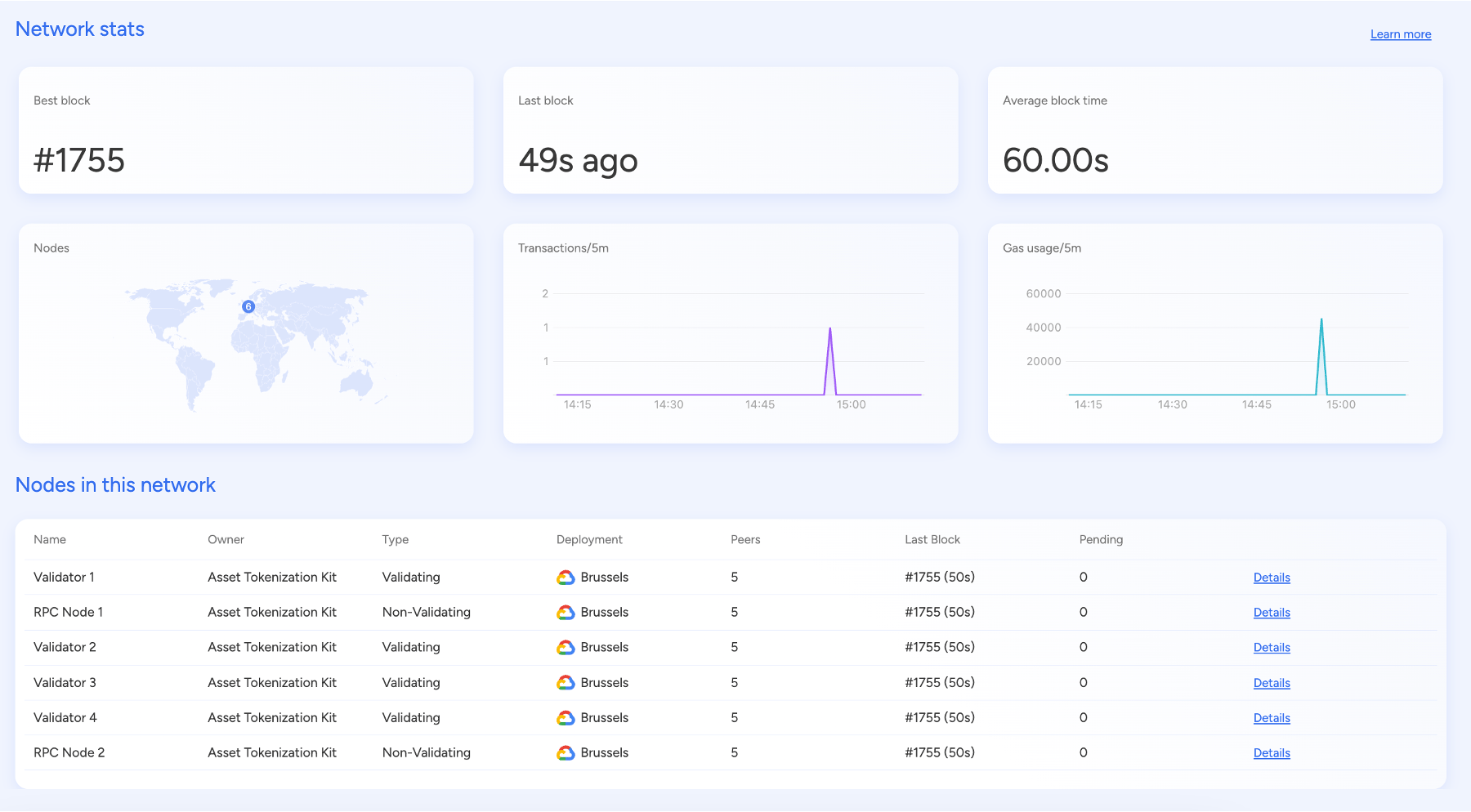

The Network Manager provides real-time insights into network performance:

• Current Block Height: Represents the latest block processed.
• Transaction Volume: Gives an overview of the number and frequency of transactions, allowing organizations to analyze usage trends.
• Node Health Monitoring: Ensures that validator and RPC nodes remain active and operational.
• Gas Consumption: Analytics provide insights into network congestion and transaction costs.
• Pending Transactions: Monitoring helps identify potential bottlenecks in the system, enhancing troubleshooting and optimization efforts.

Hyperledger fabric networks

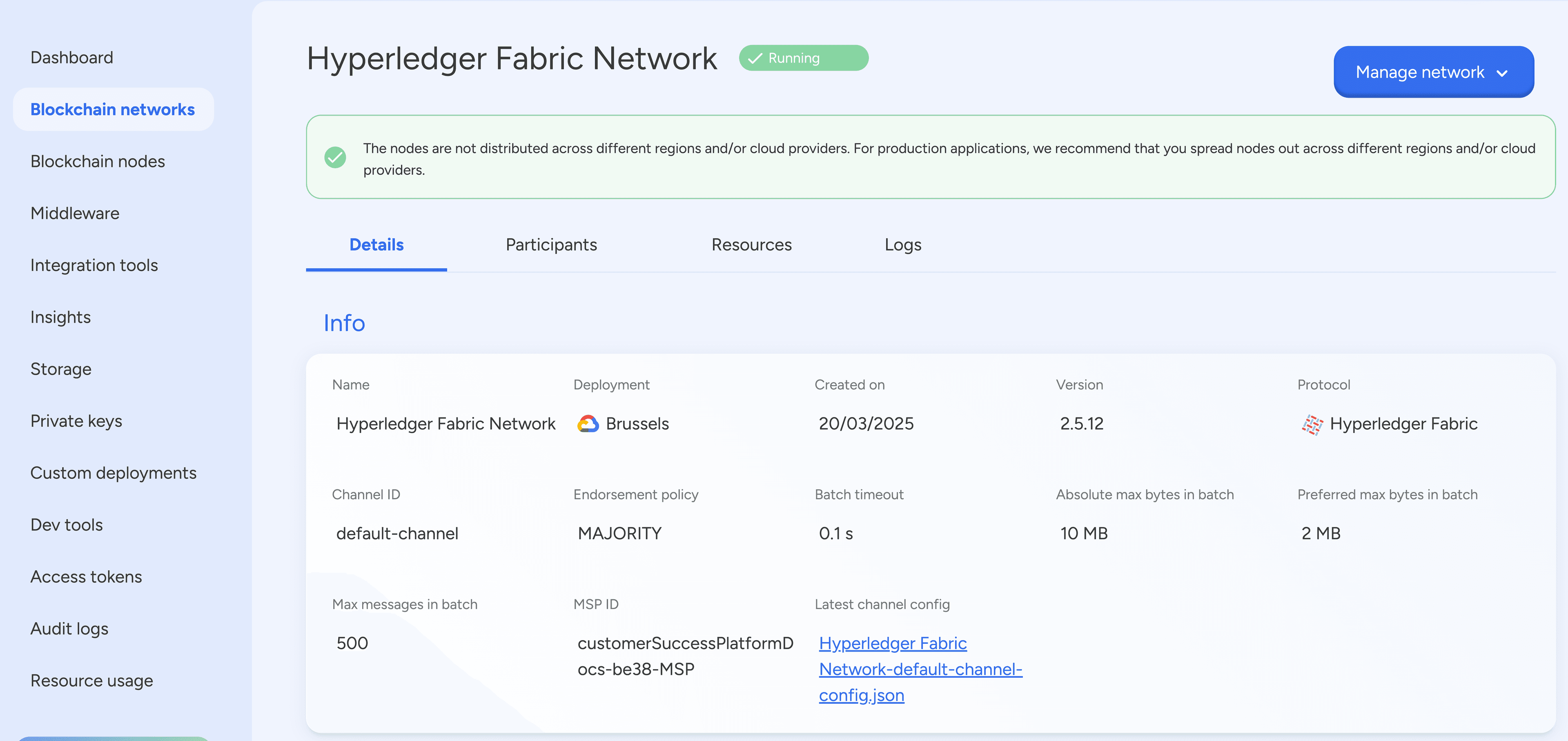

The dashboard offers comprehensive network monitoring, including:

• Network Overview: Name, deployment location, creation date, blockchain version, protocol type, channel ID, MSP ID.
• Channel Configuration JSON File Access.
• Batch Processing Settings:
  • Timeout
  • Maximum messages
  • Batch size

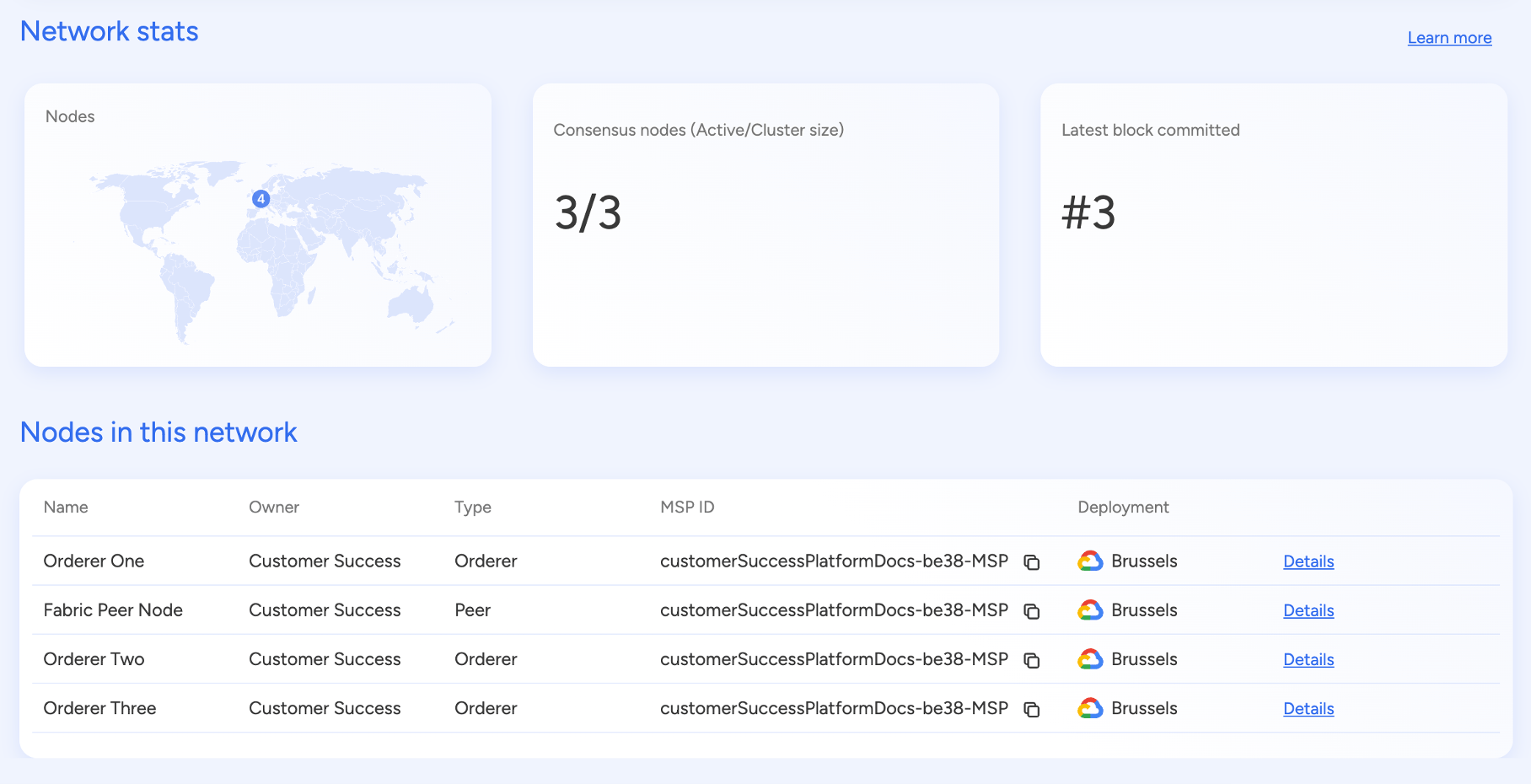

Real-time performance monitoring

• Number and location of nodes.
• Active consensus nodes and cluster size.
• Latest block committed.
• Real-time transaction monitoring, allowing users to keep track of all blockchain activities.
• Health status of orderer and peer nodes.
• Performance analytics, including block generation times, to help organizations optimize their blockchain operations.
• Endorsement policy compliance tracking to ensure transactions adhere to predefined security and governance policies.

System recommendations

Recommendation Alerts for fault tolerance and orderer node requirements are provided in the system.

Key benefits

• Simplifies the deployment process for Hyperledger Fabric networks through a guided setup approach.
• Efficiently configures access control, consensus models, and governance settings, ensuring a seamless blockchain deployment experience.
• Designed for scalability, supporting multi-organization setups with secure identity management.
• Integrated monitoring provides organizations with real-time insights into network performance and compliance adherence.

---

Supported blockchain network protocols

Private permissioned networks

SettleMint's Network Manager excels at creating and managing private permissioned networks, which are ideal for enterprises requiring strict control over data privacy, access, and governance. Below are the supported frameworks, enriched with additional details and practical use cases.

Hyperledger besu

Key Features Private transactions via Tessera. High performance with configurable consensus mechanisms. Ethereum compatibility for smart contract development.

Example Use Cases Enterprise financial settlements. Private blockchain networks for regulated industries. Supply chain tracking and transparency.

---

Quorum

Key Features Privacy through private transactions and contract execution. Ethereum compatibility for existing smart contracts. High throughput with Raft consensus.

Example Use Cases Banking and financial services requiring confidential transactions. Healthcare data exchange with controlled access. Corporate consortia with secure shared ledgers.

---

Hyperledger fabric

Key Features Channels for private data sharing. Pluggable consensus for optimization. Endorsement policies for transaction validation.

Example Use Cases Enterprise supply chain management. Trade finance and document verification. Interbank settlements with controlled access.

---

Layer 1 (l1) public networks

Ethereum

Key Features Smart contracts written in Solidity. Large ecosystem of tools and dApps. PoS consensus for scalability.

Example Use Cases Decentralized finance (DeFi) applications. Non-fungible tokens (NFTs) marketplaces. Enterprise-grade smart contract automation.

---

Avalanche

Key Features Subnets for isolated, customizable blockchain environments. High throughput with transaction finality in under 2 seconds. EVM compatibility for easy migration of Ethereum dApps.

Example Use Cases Institutional DeFi solutions. Gaming and metaverse projects. Tokenized assets and securities.

---

Hedera hashgraph

Key Features aBFT consensus for high security and fault tolerance. Scalability with up to 10,000 transactions per second. Fixed, low-cost fees for predictable budgeting.

Example Use Cases Government ID and voting systems. Secure digital asset management. Supply chain and logistics solutions.

---

Sonic

Key Features High throughput with up to 10,000 transactions per second. Sub-second finality for real-time processing. EVM compatibility with a secure Ethereum bridge.

Example Use Cases Real-time DeFi applications. High-frequency trading platforms. Scalable gaming and NFT ecosystems.

---

Layer 2 (l2) public networks

Polygon pos

Key Features Near-instant transactions with minimal fees. Full Ethereum compatibility for smart contracts and dApps. Bridging mechanism for secure asset transfers between Polygon and Ethereum.

Example Use Cases High-volume gaming applications. NFT marketplaces with low transaction fees. Scalable DeFi platforms.

---

Polygon zkevm

Key Features zk-rollups for high throughput and low costs. EVM compatibility for seamless dApp migration. Enhanced privacy through zero-knowledge proofs.

Example Use Cases Secure enterprise transactions with privacy. Scalable Ethereum-based DeFi applications. Cost-effective NFT minting and trading.

---

Optimism

Key Features Optimistic Rollups for cost-effective scaling. Near-identical Ethereum experience for developers. Fast transaction confirmation with Ethereum finality.

Example Use Cases Scalable decentralized exchanges (DEXs). Identity verification systems. Secure voting mechanisms.

---

Arbitrum

Key Features High throughput with reduced gas costs. Full EVM compatibility for smart contracts. Seamless integration with Ethereum's ecosystem.

Example Use Cases Cost-effective Layer 2 scaling for DeFi applications. Scalable smart contract automation. Low-fee gaming and metaverse applications.

---

Soneium

Key Features Optimistic Rollups for scalable, low-cost transactions. EVM compatibility for developer-friendly dApp deployment. Integration with Ethereum via the OP Stack Superchain.

Example Use Cases Entertainment-focused dApps and NFT platforms. Scalable enterprise solutions on Ethereum. Cost-efficient gaming and content ecosystems.

---
